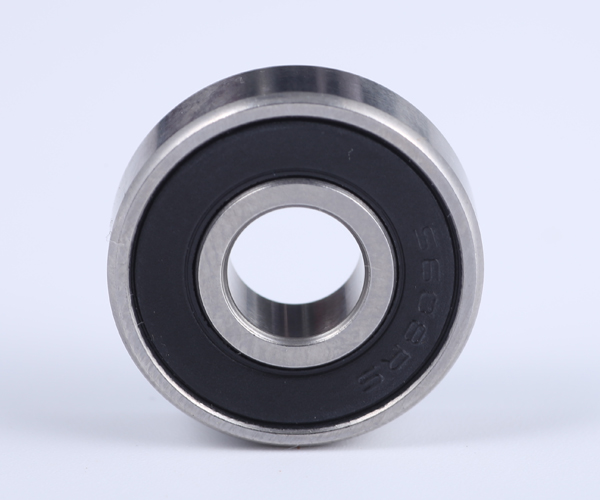

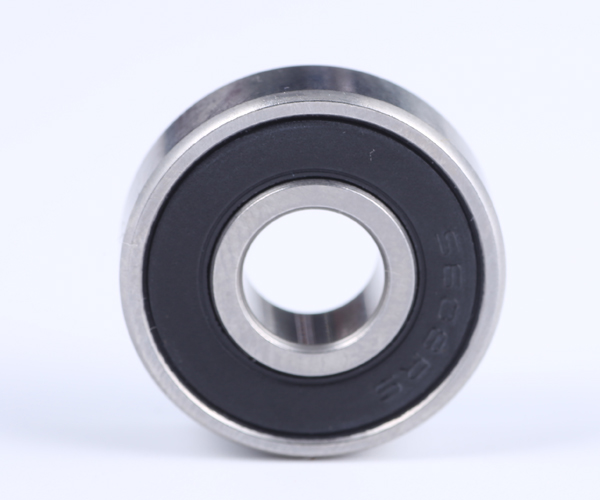

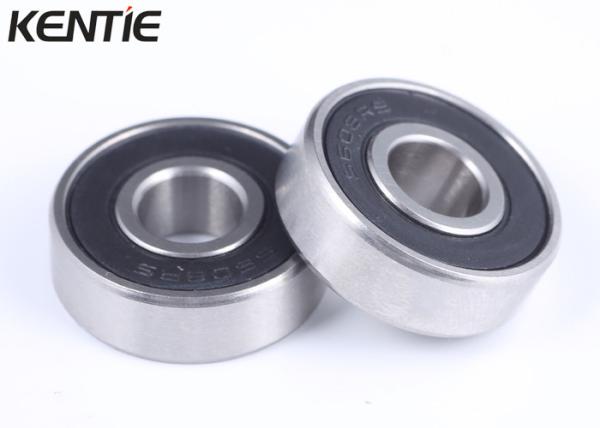

Skate Single Row 608rs Stainless Steel Deep Groove Ball Bearings Anti - Corrosion
Product features:
1. Single-row bearing for supporting typical radial loads
2. Stainless steel for resistance to corrosion and high temperatures
3. Rubber seals on both sides of the bearing to keep lubricant in and contaminants out
Stainless steel bearing S608RS can be used in the working condition of underwater and damp heat enviroment.
Stainless steel has the ability of resistance to atmospheric oxidation-namely,stainless,also has in the medium containing acid,alkali,salt corrosion-namely,the ability of corrosion resistance.But the size of its ability to resisit corrosion was with the chemical composition of steel itself,and each state,using conditions and environmental medium type and change.
Specifications
| Bearing Model |
S608RS bearing |
| Outer Diameter |
22mm |
| Inner Bore |
8mm |
| Width |
7mm |
| Material |
Stainless Steel 420 |
| Seals |
RS |
| Lubrication |
Grease |
| Package |
Plastic tube |
Our Advantages
1. Professional Stainless Steel Bearing manufacturer since 1998
2. High quality with ISO standards
3. Low noise, low vibration, smooth rotation
4. High corrosion resistance, 72 hours salt spray test
5. Free OEM
| NO |
d |
D |
B |
Load Rating |
Steel Ball |
Chamfer |
Weight |
| Bearing No |
mm inch |
mm inch |
mm inch |
Cr N |
Cor N |
Amount |
Size |
KG |
| SS605 |
5 |
14 |
5 |
1.33 |
0.505 |
6 |
2.381 |
0.3 |
0.0045 |
| SS606 |
6 |
17 |
6 |
2.19 |
0.865 |
8 |
2.381 |
0.3 |
0.006 |
| SS607 |
7 |
19 |
6 |
2.24 |
0.91 |
6 |
3.969 |
0.3 |
0.007 |
| SS608 |
8 |
22 |
7 |
3.35 |
1.4 |
7 |
3.969 |
0.3 |
0.015 |
| SS609 |
9 |
34 |
7 |
3.4 |
1.45 |
7 |
3.369 |
0.3 |
0.016 |
| SS6000 |
10 |
26 |
8 |
4.55 |
1.96 |
7 |
4.763 |
0.3 |
0.019 |
| SS6001 |
12 |
28 |
8 |
5.1 |
2.39 |
8 |
4.763 |
0.3 |
0.022 |
| SS6002 |
15 |
32 |
9 |
5.6 |
2.84 |
9 |
4.763 |
0.3 |
0.031 |
| SS6003 |
17 |
35 |
10 |
6.8 |
3.35 |
10 |
4.763 |
0.3 |
0.04 |
| SS6004 |
20 |
42 |
12 |
9.4 |
5.05 |
9 |
6.35 |
0.6 |
0.068 |
| SS6005 |
25 |
47 |
12 |
10.1 |
5.85 |
10 |
6.35 |
0.6 |
0.078 |
| SS6006 |
30 |
55 |
13 |
13.2 |
8.3 |
11 |
6.747 |
1 |
0.11 |
| SS6007 |
35 |
62 |
14 |
16 |
0.3 |
11 |
7.938 |
1 |
0.148 |
| SS6008 |
40 |
68 |
15 |
16.8 |
11.5 |
12 |
7.938 |
1 |
0.185 |
| SS6009 |
45 |
75 |
16 |
21 |
15.1 |
12 |
9 |
1 |
0.23 |
| SS6010 |
50 |
80 |
16 |
21.8 |
16.6 |
13 |
9 |
1 |
0.258 |
| SS6011 |
55 |
90 |
18 |
28.3 |
21.2 |
11 |
11.1125 |
1 |
0.362 |
| SS6012 |
60 |
95 |
18 |
29.5 |
23.2 |
13 |
11.1125 |
1 |
0.385 |
| SS6013 |
65 |
100 |
18 |
30.5 |
25.2 |
13 |
11.1125 |
1 |
0.41 |
| SS6014 |
70 |
110 |
20 |
38 |
31 |
13 |
12 |
1 |
0.575 |
Detailed Pictures
