High Load 6204zz Grooved Ball Bearing , Radial Double Sealed Ball Bearing High Tempreture Resistance
Product features:
Item: S6204-2Z Double Shields Ball Bearings
Type: Deep groove ball bearings
Material: Stainless Steel S6204ZZ
Closures: Metal Shields
Size: 20mm*47mm*14mm 6204ZZ
S6204ZZ bearings with low noise,low vibration, high precision, high performance,high tempreture resistance,good seal.Widely used in mirco motor,mirco step motor,fitness equiement,automobile motor,household fan,precision instruments,machinery production equipment etc.
Specifications
| Bearing Model | S6204ZZ bearing |
| Outer Diameter | 47mm |
| Inner Bore | 20mm |
| Width | 14mm |
| Material | Stainless Steel 304 |
| Seals | ZZ |
| Lubrication | Oil/ Grease/Dry |
| Package | Plastic tube |
Company Introduce:
Quality certificate type: ISO9001, SGS, ROHS,CE
Year started: 1998 Number of production equipments:101
Company activity: Manufacturer
Number of testing equipments:34
Registered capital: RMB 500 million
Number of R&D Staff:14
Factory area:8000 square meters
Number of Employees:127
Product range (Dimension):1-120mm
Inventory level: 5 million
Hope to build win-win cooperation with you.
| Bearing NO | Bore | O.D. | Width | Load Rating | Steel Ball | Chamfer | Weight |
| d | D | B | Cr | Cor |
| mm | mm | mm | KN | KN | Number | Size | mm | KG |
| SS624 | 4 | 13 | 5 | 0.89 | 0.42 | | | 0.2 | 0.003 |
| SS625 | 5 | 16 | 5 | 1.76 | 0.68 | 8 | 2.381 | 0.3 | 0.005 |
| SS626 | 6 | 19 | 6 | 2.64 | 0.885 | 6 | 3.969 | 0.3 | 0.008 |
| SS627 | 7 | 22 | 7 | 3.35 | 1.4 | 7 | 3.969 | 0.3 | 0.014 |
| SS628 | 8 | 34 | 8 | 4 | 1.59 | 7 | 3.969 | 0.3 | 0.016 |
| SS629 | 9 | 26 | 8 | 4.55 | 1.96 | 7 | 4.763 | 0.3 | 0.019 |
| SS6200 | 10 | 30 | 9 | 5.1 | 2.39 | 8 | 4.763 | 0.6 | 0.032 |
| SS6201 | 12 | 32 | 10 | 6.1 | 2.75 | 7 | 5.953 | 0.6 | 0.035 |
| SS6202 | 15 | 35 | 11 | 7.75 | 3.6 | 8 | 5.953 | 0.6 | 0.045 |
| SS6203 | 17 | 40 | 12 | 9.6 | 4.6 | 8 | 6.747 | 0.6 | 0.064 |
| SS6204 | 20 | 47 | 14 | 12.8 | 6.65 | 8 | 7.938 | 1 | 0.103 |
| SS6205 | 25 | 52 | 15 | 14 | 7.85 | 9 | 7.938 | 1 | 0.127 |
| SS6206 | 30 | 62 | 16 | 19.5 | 11.3 | 9 | 9.525 | 1 | 0.2 |
| SS6207 | 35 | 72 | 17 | 25.7 | 15.3 | 9 | 11.11 | 1 | 0.288 |
| SS6208 | 40 | 80 | 18 | 29.1 | 17.8 | 9 | 12 | 1 | 0.368 |
| SS6209 | 45 | 85 | 19 | 32.5 | 20.4 | 10 | 12 | 1 | 0.416 |
| SS6210 | 50 | 90 | 20 | 35 | 23.2 | 10 | 12.7 | 1 | 0.463 |
| SS6211 | 55 | 100 | 21 | 43.5 | 29.2 | 10 | 14.288 | 0.5 | 0.602 |
| SS6212 | 60 | 110 | 22 | 52.5 | 36 | 10 | 15.08 | 1.5 | 0.789 |
| SS6213 | 65 | 120 | 23 | 57.2 | 40.1 | 10 | 16.668 | 1.5 | 0.99 |
| SS6214 | 70 | 130 | 24 | 62 | 44 | 11 | 16.668 | 1.5 | 1.084 |

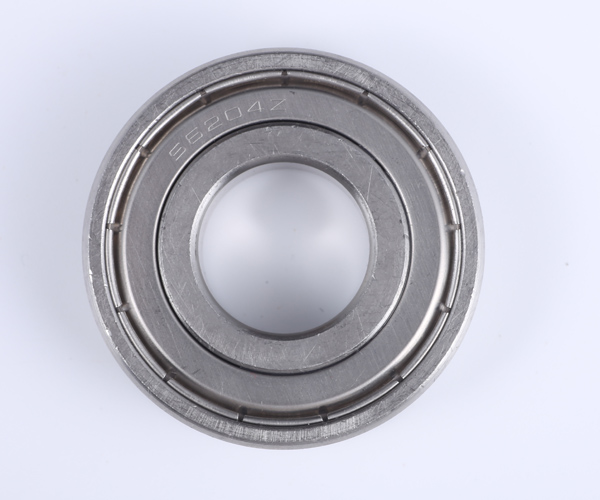

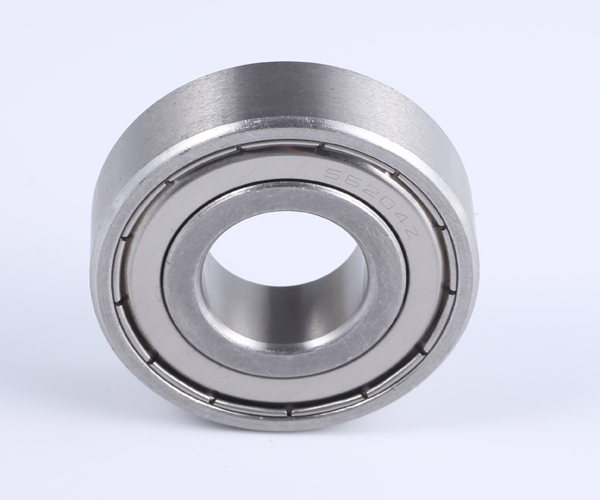

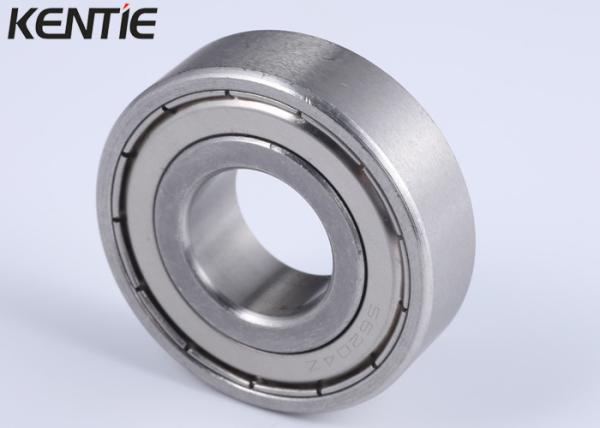

Detailed Pictures
