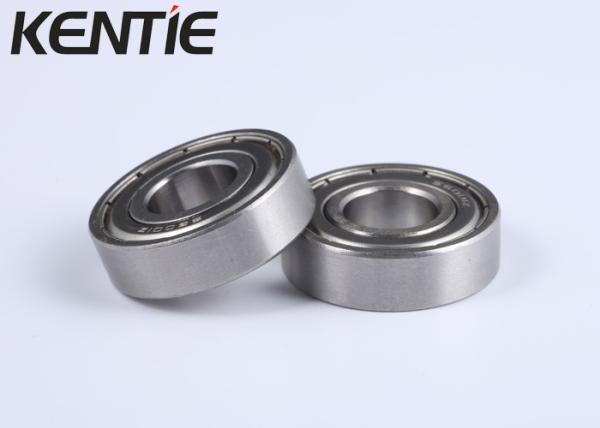

High Presision Single Row Deep Groove Ball Bearing 6001ZZ Dynamic Load Rating 3.93KN
Inner Size: 12mm
Outer Size: 28mm
Width Size: 8mm
Chamfer: 0.3mm
Dynamic Load Rating: 314Kg
Static Load Rating: 178kg
Ball Number: 8
Grease Max Speed: 19000 rpm
Oil Max Speed: 26000 rpm
Single Weight: 0.021kg
Product features:
1. small friction resistance, small power consumption, high mechanical efficiency, easy to start.
2. size standardization, interchangeable, installation convenient disassembly, convenient maintenance.
3. compact structure, light weight, the axial size is more narrow.
4. high precision, high speed, wear small, long service life.
5. part of the bearing with automatic tuning new performance.
6. suitable for mass production, quality stable and reliable, high production efficiency.
Our Advantages
1. Professional Stainless Steel Bearing manufacturer since 1998
2. High quality with ISO standards
3. Low noise, low vibration, smooth rotation
4. High corrosion resistance, 72 hours salt spray test
5. Free OEM
| NO | d | D | B | Load Rating | Steel Ball | Chamfer | Weight |
| Bearing No | mm inch | mm inch | mm inch | Cr N | Cor N | Amount | Size | KG |
| SS605 | 5 | 14 | 5 | 1.33 | 0.505 | 6 | 2.381 | 0.3 | 0.0045 |
| SS606 | 6 | 17 | 6 | 2.19 | 0.865 | 8 | 2.381 | 0.3 | 0.006 |
| SS607 | 7 | 19 | 6 | 2.24 | 0.91 | 6 | 3.969 | 0.3 | 0.007 |
| SS608 | 8 | 22 | 7 | 3.35 | 1.4 | 7 | 3.969 | 0.3 | 0.015 |
| SS609 | 9 | 34 | 7 | 3.4 | 1.45 | 7 | 3.369 | 0.3 | 0.016 |
| SS6000 | 10 | 26 | 8 | 4.55 | 1.96 | 7 | 4.763 | 0.3 | 0.019 |
| SS6001 | 12 | 28 | 8 | 5.1 | 2.39 | 8 | 4.763 | 0.3 | 0.022 |
| SS6002 | 15 | 32 | 9 | 5.6 | 2.84 | 9 | 4.763 | 0.3 | 0.031 |
| SS6003 | 17 | 35 | 10 | 6.8 | 3.35 | 10 | 4.763 | 0.3 | 0.04 |
| SS6004 | 20 | 42 | 12 | 9.4 | 5.05 | 9 | 6.35 | 0.6 | 0.068 |
| SS6005 | 25 | 47 | 12 | 10.1 | 5.85 | 10 | 6.35 | 0.6 | 0.078 |
| SS6006 | 30 | 55 | 13 | 13.2 | 8.3 | 11 | 6.747 | 1 | 0.11 |
| SS6007 | 35 | 62 | 14 | 16 | 0.3 | 11 | 7.938 | 1 | 0.148 |
| SS6008 | 40 | 68 | 15 | 16.8 | 11.5 | 12 | 7.938 | 1 | 0.185 |
| SS6009 | 45 | 75 | 16 | 21 | 15.1 | 12 | 9 | 1 | 0.23 |
| SS6010 | 50 | 80 | 16 | 21.8 | 16.6 | 13 | 9 | 1 | 0.258 |
| SS6011 | 55 | 90 | 18 | 28.3 | 21.2 | 11 | 11.1125 | 1 | 0.362 |
| SS6012 | 60 | 95 | 18 | 29.5 | 23.2 | 13 | 11.1125 | 1 | 0.385 |
| SS6013 | 65 | 100 | 18 | 30.5 | 25.2 | 13 | 11.1125 | 1 | 0.41 |
| SS6014 | 70 | 110 | 20 | 38 | 31 | 13 | 12 | 1 | 0.575 |

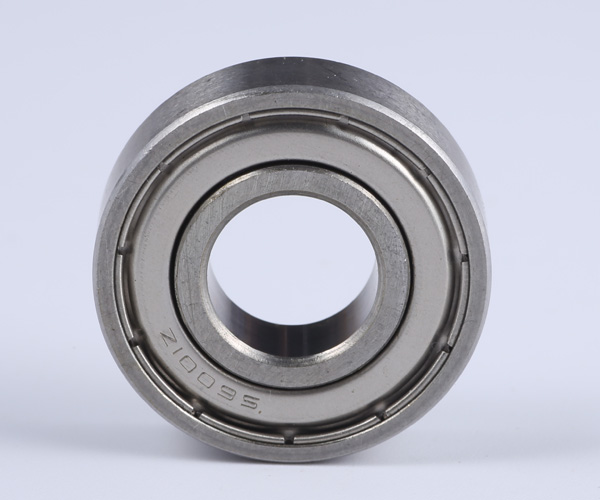

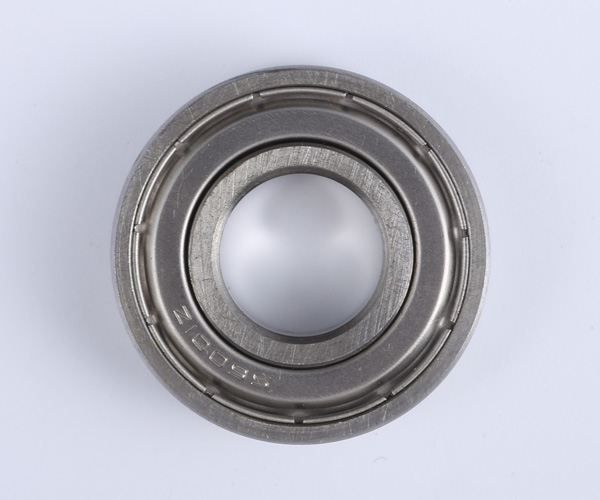

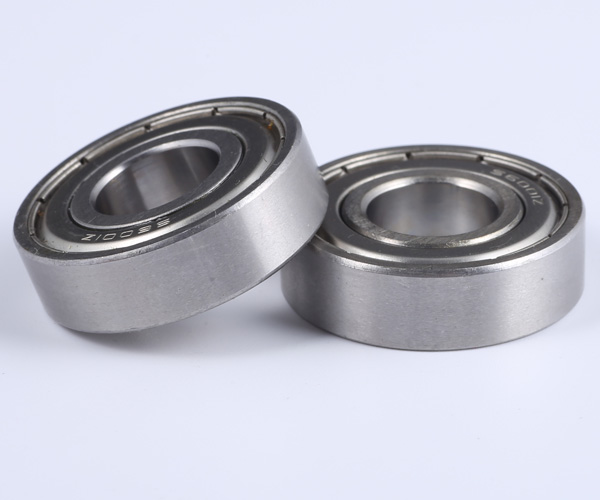

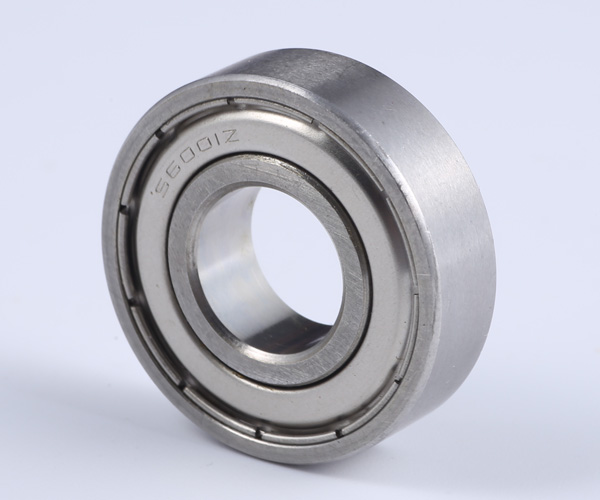

Detailed Pictures
