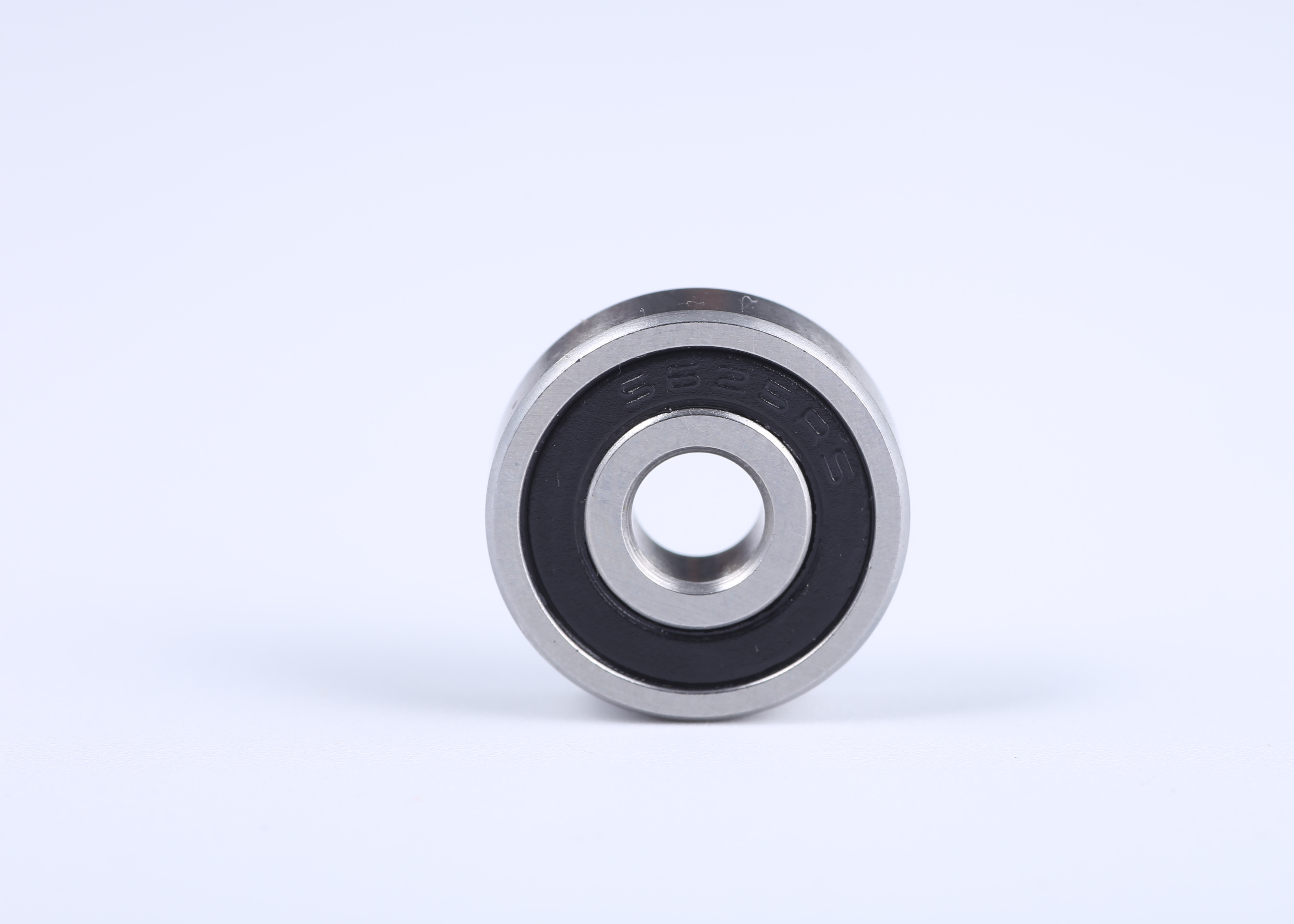

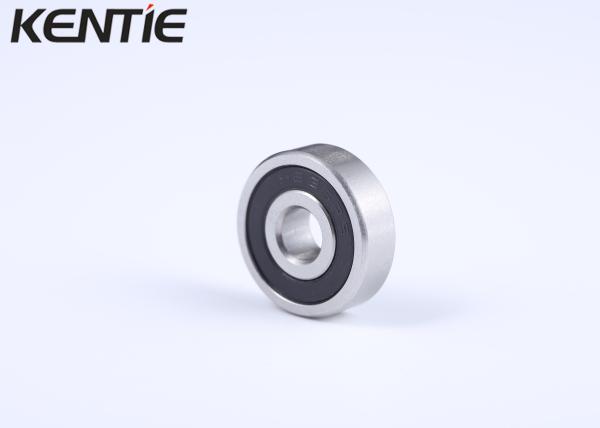

High Precision Miniature Ball Bearing S605-2RS Stainless Steel 5x14x5mm

Brand Name : Kentie

Model Number : S605-2RS

Certification : CE/RoHS/ISO9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Western Union,Paypal, MoneyGram, D/P, D/A, L/C

Supply Ability : 500,000pcs per month

Delivery Time : 2-3 work days

Packaging Details : Plastic tube and carton box

Product name : High Precision Miniature Bearing S605-2RS Stainless Steel 5x14x5mm

Specification : 5*14*5mm

Dynamic Load Rating : 1.13KN

Static Load Rating : 0.51KN

Speed : 4000rpm

Weight : 0.005kg

Seals type : rubber seals

Retainer : Nylon/steel

Clearance : C0

Material : AISI420 stainless steel

Contact Now

High Precision Miniature Bearing S605-2RS Stainless Steel 5x14x5mm

Kentie S605-2RS Stainless Steel Ball Bearing is made of Stainless Steel, each bearing is rubber sealed on both sides to protect the bearing from dust or any possible contamination, and bearing is pre-lubricated with grease or light oil.

Specifications

Bearing Model	S605-2RS bearing
Outer Diameter	14mm
Inner Bore	5mm
Width	5mm
Material	Stainless Steel 420
Seals	2RS
Lubrication	Grease/oil
Package	Plastic tube

Other bearing available:

NO	d	D	B	Load Rating		Steel Ball		Chamfer	Weight
Bearing No	mm inch	mm inch	mm inch	Cr N	Cor N	Amount	Size	Chamfer	KG
SS605	5	14	5	1.33	0.505	6	2.381	0.3	0.0045
SS606	6	17	6	2.19	0.865	8	2.381	0.3	0.006
SS607	7	19	6	2.24	0.91	6	3.969	0.3	0.007
SS608	8	22	7	3.35	1.4	7	3.969	0.3	0.015
SS609	9	34	7	3.4	1.45	7	3.369	0.3	0.016
SS6000	10	26	8	4.55	1.96	7	4.763	0.3	0.019
SS6001	12	28	8	5.1	2.39	8	4.763	0.3	0.022
SS6002	15	32	9	5.6	2.84	9	4.763	0.3	0.031
SS6003	17	35	10	6.8	3.35	10	4.763	0.3	0.04
SS6004	20	42	12	9.4	5.05	9	6.35	0.6	0.068
SS6005	25	47	12	10.1	5.85	10	6.35	0.6	0.078
SS6006	30	55	13	13.2	8.3	11	6.747	1	0.11
SS6007	35	62	14	16	0.3	11	7.938	1	0.148
SS6008	40	68	15	16.8	11.5	12	7.938	1	0.185
SS6009	45	75	16	21	15.1	12	9	1	0.23
SS6010	50	80	16	21.8	16.6	13	9	1	0.258
SS6011	55	90	18	28.3	21.2	11	11.1125	1	0.362
SS6012	60	95	18	29.5	23.2	13	11.1125	1	0.385
SS6013	65	100	18	30.5	25.2	13	11.1125	1	0.41
SS6014	70	110	20	38	31	13	12	1	0.575

High Precision Miniature Ball Bearing S605-2RS Stainless Steel 5x14x5mm
