3 / 8" x 7 / 8"x 9 / 32" inch SR6-2RS Stainless Steel Sealed Bearing High Corrosion Resistance

Product Categories
Dongguan Kentie Bearing Co., Ltd.
Contact Now

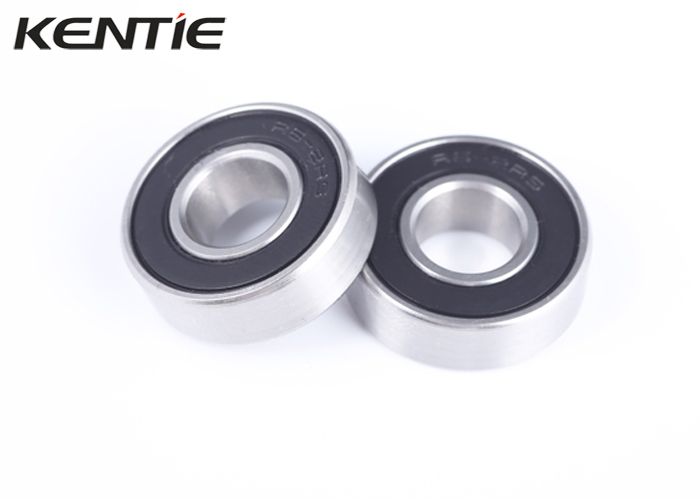

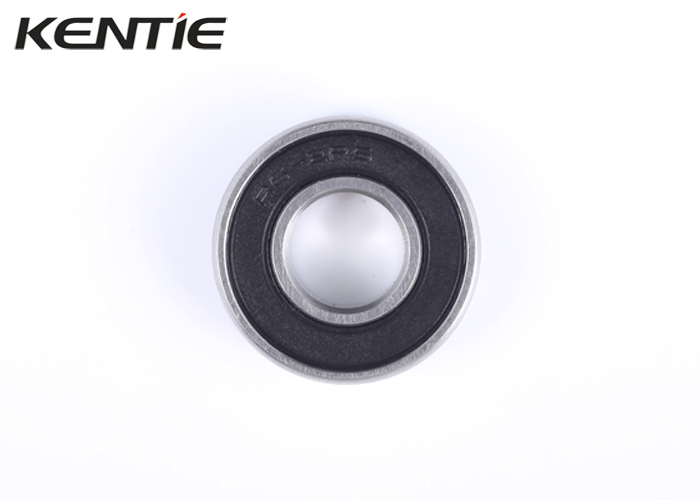

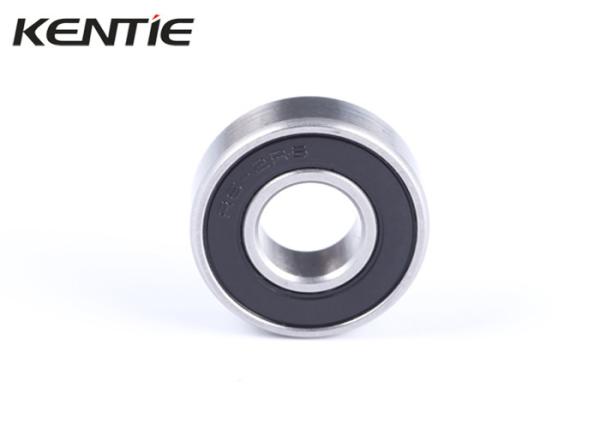

3 / 8" x 7 / 8"x 9 / 32" inch SR6-2RS Stainless Steel Sealed Bearing High Corrosion Resistance

  • 1
  • 2
  • 3

Brand Name : Kentie

Model Number : SR6-2RS

Certification : CE/RoHS/ISO9001

Place of Origin : China

MOQ : 100pcs

Payment Terms : T/T, Western Union,Paypal, MoneyGram, D/P, D/A, L/C

Supply Ability : 500,000pcs per month

Delivery Time : 2-3 work days

Packaging Details : Plastic tube and carton box

Product name : SR6-2RS Stainless Steel Sealed Bearing 3/8"x7/8"x9/32" inch

Specification : 3/8"x7/8"x9/32" inch

Dynamic Load Rating : 3.35KN

Static Load Rating : 1.41KN

Speed : 4000rpm

Weight : 0.0117kg

Seals type : rubber seals

Retainer : Nylon/steel

Clearance : C0

Material : AISI420 stainless steel

Contact Now

SR6-2RS Stainless Steel Sealed Bearing 3/8"x7/8"x9/32" inch

SR6-2RS Stainless Steel Sealed Bearing is made of Stainless Steel, each bearing are rubber sealed from both sides to protect the bearing from dust or any possible contamination, also bearing is pre-lubricated.

Specifications of SR6-2RS

Bearing Model SR6-2RS bearing
Outer Diameter 7/8"
Inner Bore 3/8"
Width 9/32"
Material Stainless Steel 420
Seals 2RS
Lubrication Grease/oil
Package Plastic tube

Other bearing available:

Bearing NO Bore d Diameter D Width B Chamfer Load Rating Weight
mm inch mm inch mm inch mm inch Cr N Cor N KG
R2 3.175 0.125 9.525 0.375 3.969 0.156 0.3 0.012 640 226 0.0014
R2A 3.175 0.125 12.7 0.5 4.366 0.172 0.3 0.012 640 226 0.0033
R3 4.762 0.1875 12.7 0.5 4.978 0.196 0.3 0.012 1310 485 0.0029
R4 6.35 0.25 15.875 0.625 4.978 0.196 0.3 0.012 1470 600 0.0045
R4A 6.35 0.25 19.05 0.75 7.144 0.281 0.4 0.016 2410 911 0.01
R6 9.525 0.375 22.225 0.875 7.144 0.281 0.4 0.016 3350 1410 0.0117
R8 12.7 0.5 28.575 1.125 7.938 0.313 0.4 0.016 5110 2380 0.021
R10 15.875 0.625 34.925 1.375 8.731 0.344 0.8 0.032 6000 3250 0.0367
R12 19.05 0.75 41.275 1.625 11.112 0.437 0.8 0.032 8370 4520 0.063
R14 22.225 0.875 47.625 1.875 12.7 0.500 0.8 0.032 10060 5920 0.107
R16 25.4 1 50.8 2 12.7 0.500 0.8 0.032 10060 5920 0.107
R18 28.575 1.125 53.975 2.125 12.7 0.500 0.8 0.032 11900 7460 0.122
R20 31.75 1.25 57.15 2.25 12.7 0.500 0.8 0.032 13230 8300 0.125
R22 34.925 1.375 63.5 2.5 14.288 0.563 0.8 0.032 16210 10420 0.165
R24 38.1 1.5 66.675 2.625 14.288 0.563 0.8 0.032 17030 11700 0.172
R144 3.175 0.125 6.35 0.25 2.779 0.109 0.08 0.003 294 98 0.0003
R155 3.969 0.1563 7.938 0.3125 3.175 0.125 0.08 0.003 392 147 0.00055
R156 4.762 0.1875 7.938 0.3125 3.175 0.125 0.08 0.003 392 147 0.0045
R166 4.762 0.25 9.525 0.375 3.175 0.125 0.08 0.003 715 274 0.0008
R168 6.35 0.1875 9.525 0.375 3.175 0.125 0.08 0.003 421 205 0.0006
R186 4.762 0.1875 12.7 0.5 3.969 0.156 0.13 0.005 1313 490 0.002
R188 6.35 0.25 12.7 0.5 4.762 0.187 0.13 0.005 833 372 0.002
R1810 7.938 0.3125 12.7 0.5 3.969 0.156 0.13 0.005 882 421 0.0017

3 / 8" x 7 / 8"x 9 / 32" inch SR6-2RS Stainless Steel Sealed Bearing High Corrosion Resistance3 / 8" x 7 / 8"x 9 / 32" inch SR6-2RS Stainless Steel Sealed Bearing High Corrosion Resistance
