S635ZZ SUS420 Stainless Steel Ball Bearings , Door and Window Accessories

Name: S635ZZ SUS420 Stainless Steel Ball Bearings Door and Window Accessories
Brand: Kentie
Price: 0.256 USD

Quality S635ZZ SUS420 Stainless Steel Ball Bearings , Door and Window Accessories wholesale

Brand Name : Kentie

Model Number : S635ZZ

Certification : CE/SGS/ISO/Germany Ryan

Place of Origin : China

MOQ : 100pcs

Price : US$0.256

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 500,000pcs per month

Delivery Time : 2-3 work days

Packaging Details : Plastic tube and paper carton

Product Name : S635ZZ Ball Bearing

Specification : 5*19*6mm

Speed : 28000rpm

Weight : 0.008kg

Seals type : Metal Shields

Retainer : Nylon/steel

OEM : Availible

Clearance : C0/ C2 /C3

Features : Long Life、Low Vibration

Contact Now

Durable Door and Window Accessories Stainless Steel Ball Bearing S635ZZ SUS420

S635ZZ

Bearing is made of Stainless Steel Bearing has 2 Metal Shield to protect the bearing from dust or any possible contamination.

For this bearing, this is a popular size that could be used in many application that uses this size 5mm x 19mm x 6mm.

Item: Double Shielded Ball Bearings
Size: 5mm x 19mm x 6mm
Type: Deep groove ball bearings
Material: Stainless Steel
Closures: 2 Metal Shields
Quantity: One Bearing

Stainless Steel Deep Groove Ball Bearings

Bearing NO	Bore	Diameter	Width	Chamfer	Load Rating		Weight
	d	D	B	Chamfer	Cr	Cor	Weight
	mm	mm	mm	mm	N	N	KG
634	4	16	5	0.3	1880	680	0.0054
635	5	19	6	0.3	2810	1060	0.0089
636	6	22	7	0.3	3290	1360	0.0145
637	7	26	9	0.3	3340	1410	0.0258
638	8	28	9	0.3	4160	1780	0.0303
639	9	30	10	0.6	5120	2390	0.0371
6300	10	35	11	0.6	7640	3470	0.053
6301	12	37	12	1	9700	4190	0.06
6302	15	42	13	1	11400	5430	0.082
6303	17	47	14	1	13580	6580	0.115
6304	20	52	15	1.1	15940	788	0.149
6305	25	62	17	1.1	22380	11490	0.232
6306	30	72	19	1.1	27000	15200	0.349
6307	35	80	21	1.5	25660	17920	0.41
4308	40	90	23	1.5	31350	22380	0.6
6309	45	100	25	1.5	40600	3000	0.77
6310	50	110	27	2	47580	35710	1.03

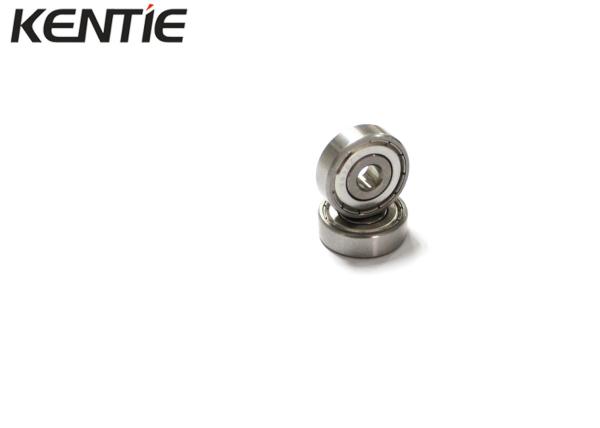

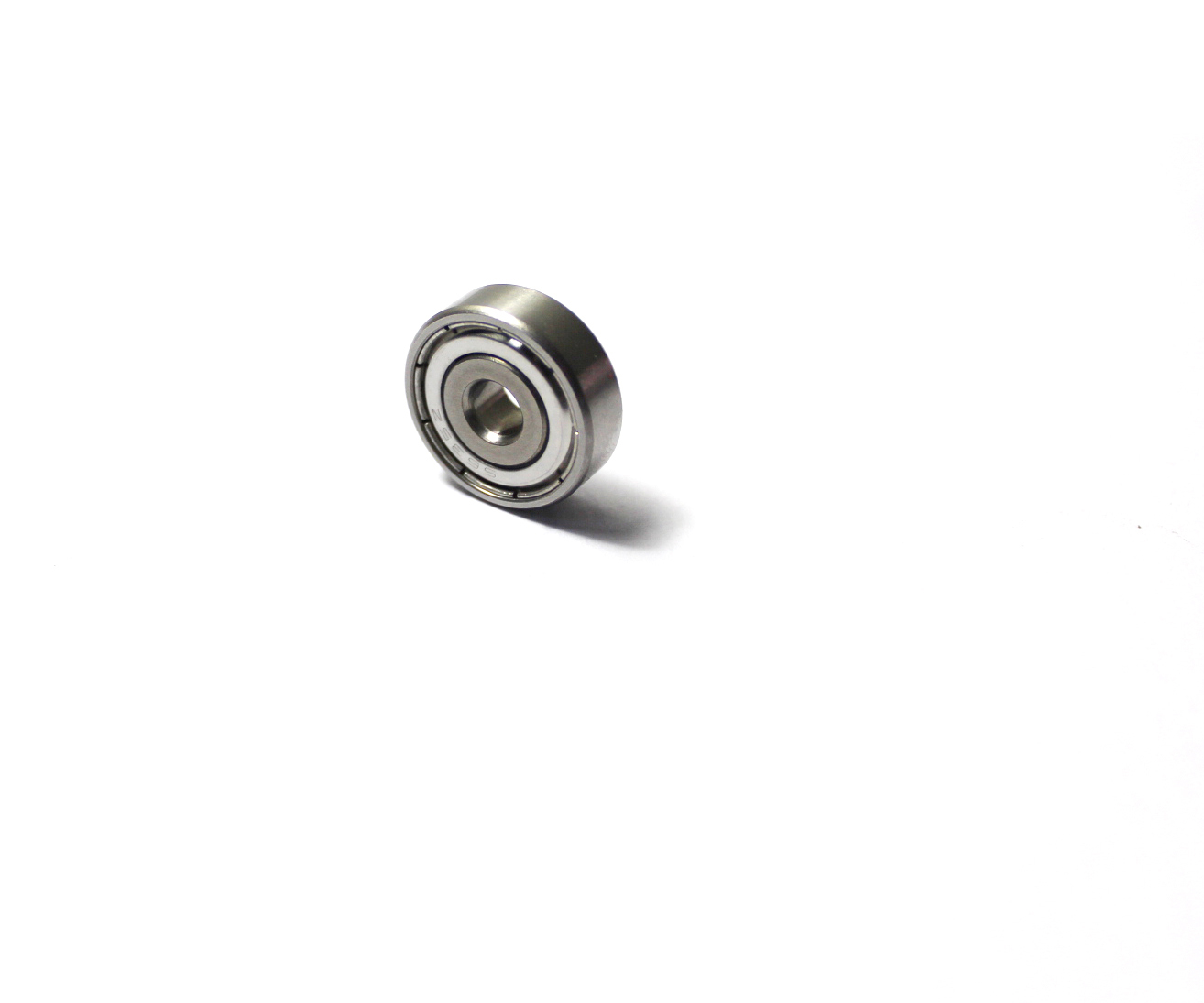

Detailed Pictures

S635ZZ SUS420 Stainless Steel Ball Bearings , Door and Window Accessories
